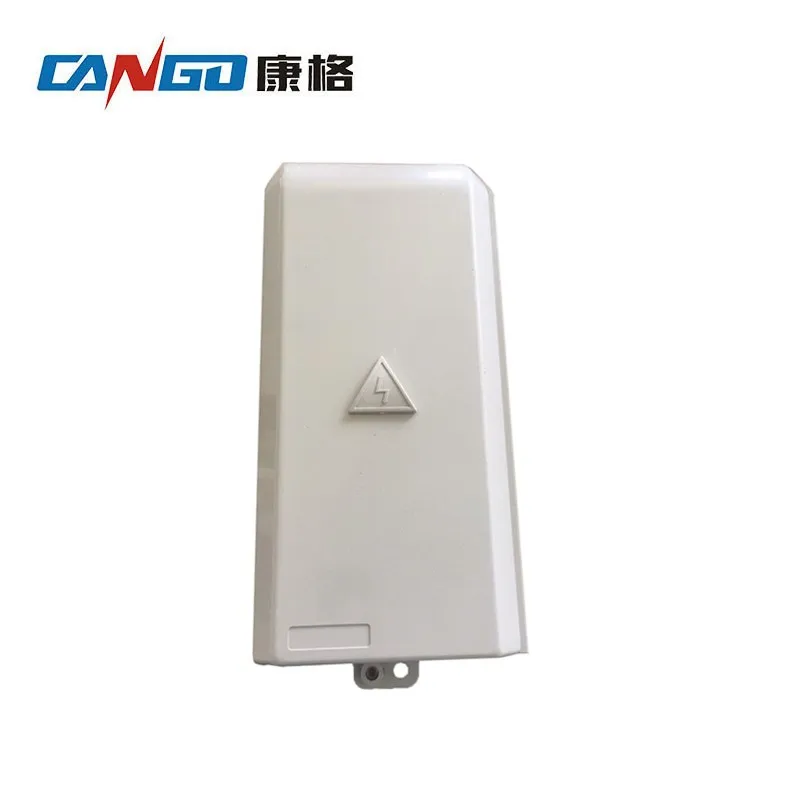

2way Din-rail Meter Box

FOB Reference Price:Get Latest Price
$10.00 - $150.00 / Pieces | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Cango
Model Number:
KG series
Protection Level:
IP54
Type:
Meter Box
External Size:
364*180*128mm
Installation Network::
LV: AC220V, AC380V
Rated insulation voltage UI::
800V
Installation type::
wall mounted/pole mounted
Material::
ABS
Installation location::
Indoor/outdoor
Protection Class::
IP54
Frequency::
50Hz or 60Hz
Life Expectancy::
≥30 years
Insulation resistance::
30kA
Dimension(LxWxD)::
364*180*128mm
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month KG series
Packaging & Delivery
Packaging Details
Package: 12 pcs in a standard export carton or according to customers' special requirements.
Port
Ningbo or Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Product Details


    Technical Data:

    1. Model No.: Din rail type

    2. Protection Degree: IP54

    3. Type: Three Phase Meter Box

    4. Outline Dimension: 364*180*128mm

    5. Color: White, Gray

    6. Port: Ningbo/Shanghai, China

    7. Operating Temperature: -25 ℃ ~ +50℃

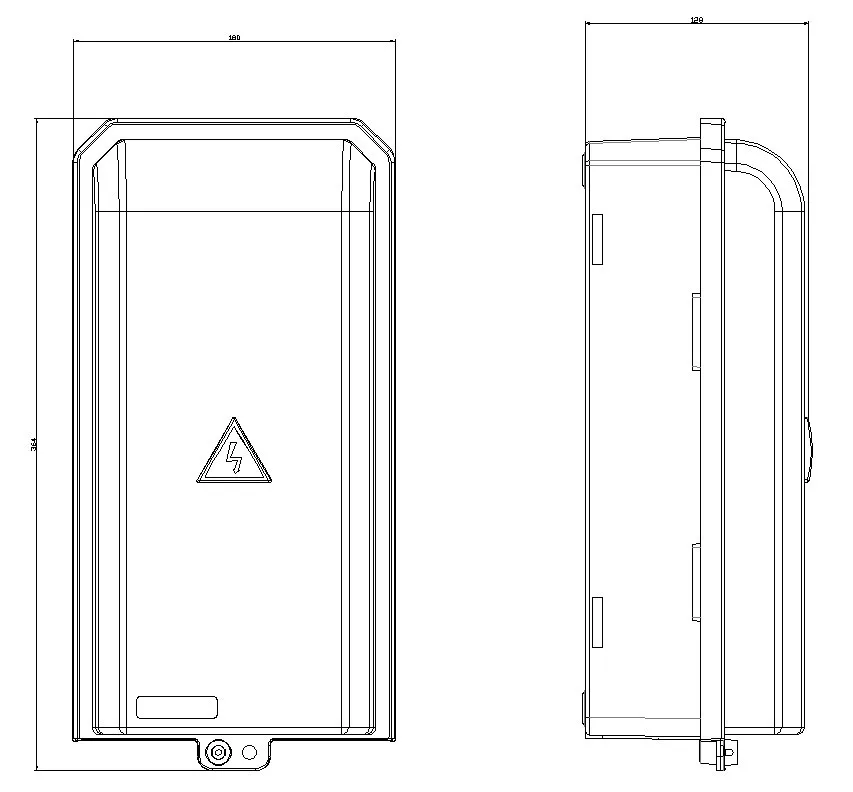

Outline Dimension & Wiring Diagram:
Product Parameters
Model
Position
Name
Specification
Qty

1 Din-rail Meter
Front of meter
Disconnect switch
HUH17-100/2P 63A
1
Meter room
MCB
DZ47-2P/C32A
1

2 Din-rail Meters

Front of meter
Disconnect switch
HUH17-100/2P 63A
1
Back of meter
Terminal Box(Two in and two out)
AFJ6/JHD-8/A
1
3 Din-rail Meters
Front of meter
Circuit breaker
DZ47-2P/C32A
1
Back of meter
RCCB
DZ47LE-32/1N
1

Box Structure:
